Vue2 Annotate gitee.png github.png

Vue2 Annotate 是一个基于注解提案 proposal-decorators 的注解框架,核心为了能在 Vue 项目中使用注解从而简化、美观化 Vue 项目结构,基于注解框架 Annotate JS


特性

  1. 使得 Vue 能够支持 Class 语法开发
  2. 通过预置注解快速实现相应配置
  3. 更加接近原生的开发方式
  4. 简单明了的代码结构

快速开始

为了简单演示,所以演示代码基于 vue-cli v4.5.0

环境配置

首先安装 Vue2 Annotate

npm install @palerock/vue2-annotate -s

yarn add @palerock/vue2-annotate

因为要使用注解语法,我们需要在 Babel 环境中引入相关依赖:

npm install @babel/plugin-proposal-decorators
npm install @babel/plugin-proposal-class-properties

yarn add @babel/plugin-proposal-decorators
yarn add @babel/plugin-proposal-class-properties

安装完成后,配置根目录下 babel.config.js 文件内容如下:

module.exports = {
    presets: [
        '@vue/cli-plugin-babel/preset'
    ],
    "plugins": [
        [
            "@babel/plugin-proposal-decorators",
            {
                "legacy": true
            }
        ],
        [
            "@babel/plugin-proposal-class-properties",
            {
                "loose": true
            }
        ]
    ]
};

至此,环境配置完成。

Demo

我们修改 vue-cli 自带的 HelloWord 组件,将其转化为一个使用 vue2-annotate 构建的组件。
首先我们修改 <script> 标签中的内容如下:

// 引入注解
import {VueComponent, Props, Computed, NativeApi} from "@palerock/vue2-annotate";

export default
// 使用 @VueComponent 使用一个名为 HelloWorld 的组件
@VueComponent
class HelloWorld {

    // 申明属性 suffix
    suffix = 'For Vue2 Annotate';

    // 声明参数 msg
    @Props
    msg = String;

    // 声明计算属性 message
    @Computed
    appendMessage() {
        return this.msg + ' ' + this.suffix
    }

    // 计算属性的第二种写法
    get message() {
        return this.msg;
    }

    // 声明方法
    handleClick(e) {
        console.log(e);
        alert(this.appendMessage);
    }

    // 使用 @NativeApi 声明钩子函数
    @NativeApi
    created() {
        console.log('created');
    }
}

紧接着修改 <template> 标签内容如下:

<div class="hello">
    <h1>{{ appendMessage }}</h1>
    <h2 @click="handleClick">{{ message }}</h2>
</div>

运行项目:

yarn run serve

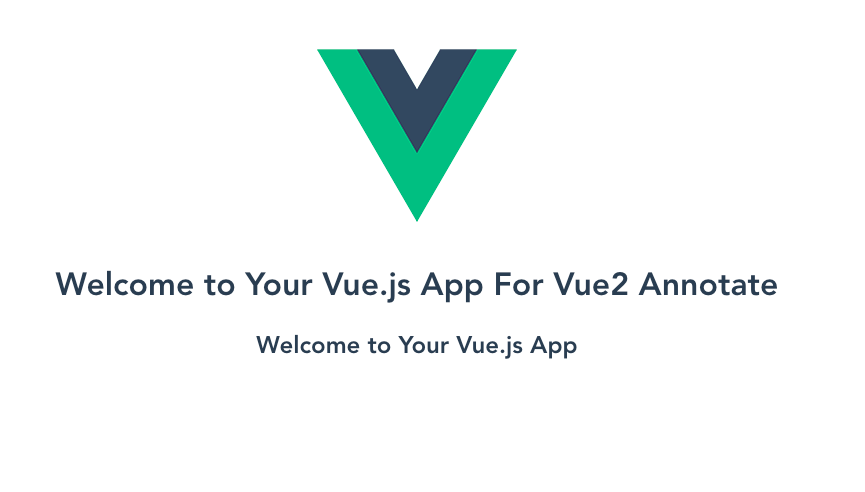

进入页面,输出内容如下图:

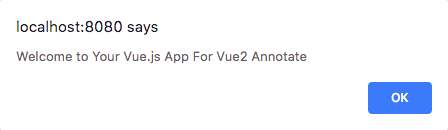

点击副标题,弹出内容如下图:

类比

在 Demo 中我们在 Vue 中使用 class 语法并且使用注解完成了一个简单的 HelloWorld 组件,若是不使用注解其等同代码结构应该如下:

export default {
    name: 'HelloWorld',
    props: {
        msg: String
    },
    data(){
        return {
            suffix: 'For Vue2 Annotate'
        };
    },
    methods: {
        handleClick(e) {
            console.log(e);
            alert(this.appendMessage);
        }
    },
    computed: {
        appendMessage() {
                return this.msg + ' ' + this.suffix
        },
        message() {
                return this.msg;
        }
    },
    created(){
        console.log('created');
    }
}

相比而言,使用注解的代码结构更加清晰明了,更加简单,并且在后续的开发中,还会有各种新的注解简化开发流程。

通过 Annotate JS 生成自定义注解(面向切面编程)

为了快速生成自定义注解,我们需要用到 Annotate JS 框架 提供的几个注解:

  • @Surround 用于自定义面向切面的动作
  • @Annoate 用于继承其它注解并且自定义参数
  • @DefaultParam 配合 @Annoate 用于指定默认参数
  • @DynamicParam 配合 @Annoate 用于指定动态参数

关于以上注解的基本用法可以参考其 API文档

由于本框架完全依赖于 Annotate JS 框架,为了方便开发,以上注解在 ^1.0.18 版本以后可以直接由该框架引入:
import {Annotate, Surround, DefaultParam, DynamicParam} from "@palerock/vue2-annotate";

了解了以上注解的基本用法后,我们以几个简单的例子来实现自定义注解

@TimeLogger 的实现

在日常开发中,如果涉及到性能优化,我们总是需要通过在方法前后添加 console.time/console.timeEnd 类似代码以实现分析其运行时间长短,而这样的代码一是看起来相当不美观,二是会使代码结构看起来十分混乱。那我们可不可以使用一个注解来完成以上工序而完全不需要修改方法内的内容呢?完全可以。
使用 @Annotate 定义 TimeLogger 的 before 和 after 切面方法
首先,我们定义一个 class 命名为 TimeLogger,并且为其加上注解 @Annotate({extends: Surround}),如下所示:

export default
@Annotate({extends: Surround})
class TimeLogger {
	// 在此定义参数
}

紧接着,我们定义 Surround 注解中的参数 beforeafter,让其能够分别运行 console.timeconsole.timeEnd,如下所示:

export default
@Annotate({extends: Surround})
class TimeLogger {

    before() {
        console.time();
    }

    after({lastValue}) {
        console.timeEnd();
		// 需要将实际返回值返回出去,避免改变原方法返回值
        return lastValue;
    }
}

设置 logApi
除此之外我们应该给每个方法中的每对 time/timeEnd 设定一个 label 使其能改匹配,不妨新增一个参数 logApi,并设置其为默认参数,这样我们就可以在使用注解时直接传参让其赋值:

export default
@Annotate({extends: Surround})
class TimeLogger {

    @DefaultParam
    logApi;

    before({annotate}) {
        // 通过 annotate 获取该注解上的其它参数值
        const {logApi} = annotate.params;
        console.time(logApi);
    }

    after({lastValue, annotate}) {
        const {logApi} = annotate.params;
        console.timeEnd(logApi);
        // 需要将实际返回值返回出去,避免改变原方法返回值
        return lastValue;
    }
}

设置好后我们回到一个 Vue Component 中,为指定方法加上该注解:

export default
@VueComponent
class CustomAnnotateTest {

    @TimeLogger('testing')
    testing(){
        console.log('do testing');
    }

}

运行后结果如下:

do testing
testing: 2.06591796875ms

让 logApi 随属性名动态改变
效果是达到了,但每次使用注解都要输入一个 logApi 感觉也不怎么优雅,要是能够自动获取方法名作为 logApi 就好了,要实现这个需求,我们需要引入 @DynamicParam 注解,通过该注解就可以在未设置参数的情况下动态的生成参数值,于是我们修改代码如下:

export default
@Annotate({extends: Surround})
class TimeLogger {

    @DynamicParam
    @DefaultParam
    logApi({propertyEntity}){
        // 设置其默认属性为属性名
        return propertyEntity.name;
    }

    before({annotate}) {
        // 通过 annotate 获取该注解上的其它参数值
        const {logApi} = annotate.params;
        console.time(logApi);
    }

    after({lastValue, annotate}) {
        const {logApi} = annotate.params;
        console.timeEnd(logApi);
        // 需要将实际返回值返回出去,避免改变原方法返回值
        return lastValue;
    }
}

然后回到 Component 中,修改代码如下:

export default @VueComponent
class CustomAnnotateTest {

    @TimeLogger
    testing() {
        console.log('do testing');
    }

}

现在针对不同方法就回自动获取其 name 作为 logApi,测试结果如下:

do testing
testing: 1.61181640625ms

在 getter/setter 方法上生效
那如果我们需要对 getter 方法或者 setter 方法测试其运行时间呢,我们修改代码如下:

export default @VueComponent
class CustomAnnotateTest {

    messages = ['hello', 'world'];

    @TimeLogger
    testing() {
        console.log('do testing');
    }

    @TimeLogger
    get secondMessage() {
        return this.messages[1];
    }

    // 注意,此处不用加注解,同一 name 如果 getter 和 setter 都加了注解,那么会生效两次
    set secondMessage(message) {
        const messages = [...this.messages];
        messages[1] = message;
        this.messages = messages; // 强制更新数组
    }

    @NativeApi
    created() {
        console.log(this.secondMessage);
        this.secondMessage = 'emmmm';
        console.log(this.secondMessage);
    }
}

运行测试,其输出结果如下:

secondMessage: 0.10595703125ms
world
secondMessage: 0.162353515625ms
secondMessage: 0.1630859375ms
emmmm

我们发现以上结果一眼看去完全看不出个所以然,全都是一样的 label,无法区分 getter 和 setter,为了更好的区分 getter 和 setter,我们可以使用参数 isGetterisSetter 来判断 getter/setter,为了避免在不同的切面方法里面重复地判断,我们可以使用参数 trans 来保存判断结果,我们修改注解内容如下:

export default
@Annotate({extends: Surround})
class TimeLogger {

    @DynamicParam
    @DefaultParam
    logApi({propertyEntity}) {
        // 设置其默认属性为属性名
        return propertyEntity.name;
    }

    before({annotate, isGetter, isSetter, trans}) {

        // 通过参数 isGetter, isSetter 添加后缀
        let suffix = '';
        if (isSetter) {
            suffix = '(Setter)';
        }
        if (isGetter) {
            suffix = '(Getter)';
        }

        // 放到 trans 里面供后续方法使用
        trans.suffix = suffix;

        // 通过 annotate 获取该注解上的其它参数值
        const {logApi} = annotate.params;
        console.time(logApi + suffix);
    }

    after({lastValue, annotate, trans}) {
        const {suffix} = trans;
        const {logApi} = annotate.params;
        console.timeEnd(logApi + suffix);
        // 需要将实际返回值返回出去,避免改变原方法返回值
        return lastValue;
    }
}

修改完成后回到页面,可以看到输出如下:

secondMessage(Getter): 0.52587890625ms
world
secondMessage(Setter): 0.74365234375ms
secondMessage(Getter): 0.093994140625ms
emmmm

发生异常提前结束计时
但是一旦在方法中报了错,就无法输出运行时间,为了解决这个问题,我们可以重写 onError 参数,和 before 类似:

export default @Annotate({extends: Surround})
class TimeLogger {

    @DynamicParam
    @DefaultParam
    logApi({propertyEntity}) {
        // 设置其默认属性为属性名
        return propertyEntity.name;
    }

    before({annotate, isGetter, isSetter, trans}) {

        // 通过参数 isGetter, isSetter 添加后缀
        let suffix = '';
        if (isSetter) {
            suffix = '(Setter)';
        }
        if (isGetter) {
            suffix = '(Getter)';
        }

        // 放到 trans 里面供后续方法使用
        trans.suffix = suffix;

        // 通过 annotate 获取该注解上的其它参数值
        const {logApi} = annotate.params;
        console.time(logApi + suffix);
    }

    after({lastValue, annotate, trans}) {
        const {suffix} = trans;
        const {logApi} = annotate.params;
        console.timeEnd(logApi + suffix);
        // 需要将实际返回值返回出去,避免改变原方法返回值
        return lastValue;
    }

    onError({annotate, trans}) {
        const {suffix} = trans;
        const {logApi} = annotate.params;
        // 捕捉到错误时,停止计时
        console.timeEnd(logApi + suffix);
    }
}

预置注解

@VueComponent

该注解作用于 class,例子如 Demo 所示,其内部未加注解的成员属性含义如下:

  • getter 方法: 同 @Computed get
  • setter 方法: 同 @Computed set (使用 setter 必须指定该属性的 getter)
  • 普通方法: 相当用未使用注解中的 methods
    @VueComponent
    class A{
        func(){
            console.log('my func');
        }
    }
    // 等同于
    ({
        name: 'A',
        methods: {
            func(){
                console.log('my func');
            }
        }
    })

  • 其它成员变量: 相当于未使用注解中的 data 返回值
    @VueComponent
    class A{
        name = 'Join';
        age = 20
    }
    // 等同于
    ({
        name: 'A',
        data(){
            return {
                name: 'Join';
                age: 20
            }
        }
    })


参数(对象形式):

  • name: 默认参数 component 的 name 值,默认为 class 名
    // name = 'A'
    @VueComponent
    class A{}

    // name = 'A1'
    @VueComponent('A1')
    class B{}

    // name = 'A2'
    @VueComponent({name: 'A2'})
    class C{}


@Props

必须作用于 @VueComponent 装饰的 class,表示该 component 暴露出的参数。

@VueComponent
class A{
    @Props
    name = String;
    @Props
    age = Number;
}

等同于未使用注解时:

({
    name: 'A',
    props: {
        name: String,
        age: Number
    }
})

@Model

必须作用于 @VueComponent 装饰的 class,表示使用 Vue Model 属性
被该注解装饰后的属性同样视为 props,并且写入 model 属性。
参数:

  • name: string 默认属性 默认值:被装饰的属性名
    • 表示监听的 prop
    • 如果该属性与被装饰的属性名不一致,则将被装饰的属性名视为计算属性, 详情如下面第二个例子
  • changeEvent: string 默认值:change

例1:

@VueComponent
class A {

    @Model
    value = String;

}

等同于:

({
    name: 'A',
    props: {
        value: String
    },
    model:{
        prop: 'value',
        event: 'change'
    }
});

例2:

@VueComponent
class B {

    @Model('value') // name 属性为 value, 被装饰属性名为 content
    content = String;

}

等同于:

({
    name: 'B',
    props: {
        value: String
    },
    model: {
        prop: 'value',
        event: 'change'
    },
    computed: {
        content: {
            get() {
                return this.value;
            },
            set(value) {
                this.$emit('change', value);
            }
        }
    }
});

@Computed

必须作用于 @VueComponent 装饰的 class,表示计算属性。

@VueComponent
class A{

    number = 1;

    @Computed
    numberPlus(){
        return this.number + 1;
    }

}

等同于未使用注解时:

({
    name: 'A',
    data(){
        return {
            number: 1
        }
    },
    computed: {
        numberPlus(){
            return this.number + 1;
        }
    }
})

@Watch

必须作用于 @VueComponent 装饰的 class,用于监听属性的改变
参数:

  • property默认参数 string 需要监听的属性名,若未设置该参数,会获取被装饰的属性名作为其值。
    • 注意:在未设置该参数的情况下为了避免属性名冲突,可以在属性名前加上 $$ 也可以被正常解析
  • deepboolean 默认值:false 监听时是否遍历子对象
  • immediateboolean 默认值:false 是否在侦听开始之后被立即调用
@VueComponent
class A {

    @Watch
    $$gender(val, oldVal) {
    }

    @Watch({deep: true, immediate: true})
    $$age(val, oldVal) {
    }

    @Watch('name')
    handleNameChanged = 'handleAgeChanged';

    @Watch({property: 'name', deep: true})
    handleNameChanged2(val, oldVal) {
    }

}

相当于:

({
    name: 'A',
    watch: {
        age: {
            handler(val, oldVal) {
            },
            deep: true, immediate: true
        },
        gender(val, oldVal) {
        },
        name: [
            'handleAgeChanged',
            {
                handler(val, oldVal) {
                }
            }
        ]
    }
});

@NativeApi

必须作用于 @VueComponent 装饰的 class,表示使用 Vue 原生属性

@VueComponent
class A{

    @NativeApi
    data(){
        // 声明变量
        return {
            name: 'Join'
        }
    }

    // 声明计算属性
    @NativeApi
    computed = {
        appendName(){
            return this.name + 'append';
        }
    };

    @NativeApi
    created(){
        // 使用生命周期
        console.log('created');
    }

}

以上不是 @NativeApi 的所有用法,该注解适用于兼容 Vue 的更多功能。


相关地址

最后疑问或建议请评论或留言
